| IHRA-Tech
e-Bulletin 6. 31st January 2020 |
| SAFETY
BELT / HARNESS |
|
|
 |
|
|
General Reg 5910, Safety,
Interior, Safety belt/harness
In good condition and securely fastened
to the frame or reinforced mounting
point.
Mandatory |
|
|
General Reg 5920, Safety,
Interior, Safety belt/harness
Reinforcement are minimum of 75mm (3
inches) by 75mm (3 inches) by 3mm (1/8
inch) steel plate.
Mandatory |
|
|
General
Reg 5930, Safety, Interior, Safety
belt/harness
All harnesses must be labelled or
stamped by the manufacturer with their
production date or an expiration (use
by) date. Onus is on the
competitor/owner to ensure that all
Harnesses are in date. Out of date
Harnesses will require exclusion from
the event on the day.
Mandatory |
| |
General Reg 5940, Safety,
Interior, Safety belt/harness
Fitted as recommended by the
manufacturer, using the supplied
hardware.
Mandatory |
|
|
General
Reg 5950, Safety, Interior, Safety
belt/harness
Bolts penetrate through belt webbing.
Forbidden |
| |
General
Reg 5960, Safety, Interior, Safety
belt/harness
Webbing crosses any surface sharper than
a diameter of 10mm (3/8 inch)
Forbidden |
| |
General Reg 5970, Safety,
Interior, Safety belt/harness
Protective plates installed where belts
wrap around any section of the fram
which is exposed to abrasion.
Mandatory |
|
|
General Reg 5980, Interior,
Safety belt/harness

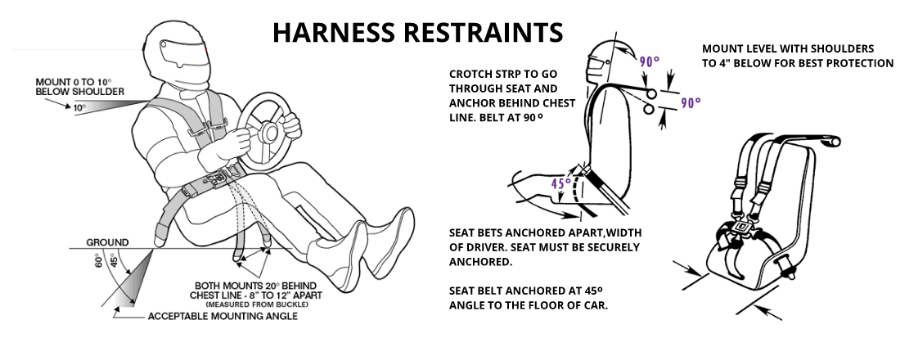

If seat is mounted in the upright
position, then straps mounted as per the
attached image below.
Mandatory |
 |
| |
General Reg 5990, Safety,
Interior, Safety belt/harness
If seat is mounted in the inclined
position, then straps mounted as per the
attached image above.
Mandatory |
|
|
|
General Reg 6000, Safety,
Interior, Safety belt/harness |
If the two shoulder straps join prior to
a common mounting point, then the
junction of the belts is at least six
inched behind the drivers neck.
Mandatory |
|
|
General Reg 6010, Safety,
Interior, Safety belt/harness
If safety belts incorporate a lever type
centre buckle, then fitted with a quick
release cover of flap to prevent
accidentally release of the buckle.
Mandatory |
|
|
General Reg 6020, Safety,
Interior, Safety belt/harness
If sedan and slower than 10.50 (1/8 mile
equivalent) or is a modern street
vehicle slower than 10.00 (1/8 mile
equivalent) then the minimum of a quick
release, lap/sash(three point) type
required. Must comply with Australian
Standard E35 or AS/NZ 2596. Definition
of a Modern Street Car is one that was
delivered from factory with a minimum of
a drivers air bag and four wheel brakes.
Mandatory |
|
|
General Reg 6030, Safety,
Interior, Safety belt/harness
If pre-modern sedan running between
10.50 and 10.00 then a minimum four
point harness. Must comply with
Australian Standard E35 or AS/NZ 2596.
Mandatory |
|
|
 |
| |
General
Reg 6060, Safety, Interior, Safety
belt/harness
All vehicles requiring a Tech Inspection
under 200 MPH- then harness to be no
older than 10 years from date of
manufacture or 5 years from the expiry
date
Mandatory |
| |
General Reg 6070, Safety,
Interior, Safety belt/harness
All vehicles requiring a Tech Inspection
then harnesses manufactured to allow for
frontal Head Restraint System are
acceptable. Must comply to SFI 16.1
Minimum and FIA equivalent.
Mandatory |
|
|
General Reg 6080, Safety,
Interior, Safety belt/harness
All vehicles requiring a Tech
Inspection, then centre-locking, five
point or six point ‘V’ type racing
harness required.
Mandatory |
|
|
|
General Reg 6100, Safety,
Interior, Safety belt/harness |
All vehicles requiring a Tech Inspection
then minimum webbing width as per
manufactures requirements complying with
SFI 16.1 minimum or FIA equivalent when
used with approved head and neck
restraint systems.
Mandatory |
|
|
|
General Reg 6140, Safety,
Interior, Safety belt/harness |
If sedans, Dragster, Altered or Funny
Car, and with a known performance of
more than 200 mph (320 kph), then
complies to SFI 16.1 minimum or FIA 8852
aquivalent.
Mandatory |
|
|
|
General Reg 6150, Safety,
Interior, Safety belt/harness |
All vehicles with a known performance of
more than 200MPH, then no older than 2
years from date of manufacture and must
not exceed expiration date SFI 16.1
minimum. FIA equivalent no older than 5
years from date of manufacture and/or
must not exceed expiration date
Mandatory |
|
|
|
General Reg 6155, Safety,
Interior, Safety belt/harness |
Minimum 2 inch wide 5 point harness
meeting SFI 16.1 or 16.2 or FIA
equivalent minimum.No older than 10
years from date of manufacture or 5
years from expiry date.
Mandatory |
|
|
 |
