IHRA TECHNICAL
BULLETINS: |
|
Please use this
area to keep up to date with the Latest
in Rules and updates as they are
implemented. This area is designed for
both Professional and Sportsman Classes. |
|
|
|
|
|
|
SAFETY
BELT / HARNESS UPDATES |
2nd December
2024 |
|
General Reg 5910, Safety,
Interior, Safety belt/harness
In good condition and securely fastened
to the frame or reinforced mounting
point.
Mandatory |
|
General Reg 5920, Safety,
Interior, Safety belt/harness
Reinforcement are minimum of 75mm (3
inches) by 75mm (3 inches) by 3mm (1/8
inch) steel plate.
Mandatory |
|
General
Reg 5930, Safety, Interior, Safety
belt/harness
All harnesses must be labelled or
stamped by the manufacturer with their
production date or an expiration (use
by) date. Onus is on the
competitor/owner to ensure that all
Harnesses are in date. Out of date
Harnesses will require exclusion from
the event on the day.
Mandatory |
|
General Reg 5940, Safety,
Interior, Safety belt/harness
Fitted as recommended by the
manufacturer, using the supplied
hardware.
Mandatory |
|
General
Reg 5950, Safety, Interior, Safety
belt/harness
Bolts penetrate through belt webbing.
Forbidden |
|
General
Reg 5960, Safety, Interior, Safety
belt/harness
Webbing crosses any surface sharper than
a diameter of 10mm (3/8 inch)
Forbidden |
|
General Reg 5970, Safety,
Interior, Safety belt/harness
Protective plates installed where belts
wrap around any section of the fram
which is exposed to abrasion.
Mandatory |
|
General Reg 5990, Safety,
Interior, Safety belt/harness
If seat is mounted in the inclined
position, then straps mounted as per the
attached image above.
Mandatory |
|
General Reg 6000, Safety,
Interior, Safety belt/harness
If the two shoulder straps join prior to
a common mounting point, then the
junction of the belts is at least six
inched behind the drivers neck.
Mandatory |
|
General Reg 6010, Safety,
Interior, Safety belt/harness
If safety belts incorporate a lever type
centre buckle, then fitted with a quick
release cover of flap to prevent
accidentally release of the buckle.
Mandatory |
|
General Reg 6020, Safety,
Interior, Safety belt/harness
If sedan and slower than 10.50 (1/8 mile
equivalent) or is a modern street
vehicle slower than 10.00 (1/8 mile
equivalent) then the minimum of a quick
release, lap/sash(three point) type
required. Must comply with Australian
Standard E35 or AS/NZ 2596. Definition
of a Modern Street Car is one that was
delivered from factory with a minimum of
a drivers air bag and four wheel brakes.
Mandatory |
|
General Reg 6030, Safety,
Interior, Safety belt/harness
If pre-modern sedan running between
10.50 and 10.00 then a minimum four
point harness. Must comply with
Australian Standard E35 or AS/NZ 2596.
Mandatory |
|
General
Reg 6060, Safety, Interior, Safety
belt/harness
All vehicles requiring a Tech Inspection
under 200 MPH- then harness to be no
older than 10 years from date of
manufacture or 5 years from the expiry
date
Mandatory |
|
General Reg 6070, Safety,
Interior, Safety belt/harness
All vehicles requiring a Tech Inspection
then harnesses manufactured to allow for
frontal Head Restraint System are
acceptable. Must comply to SFI 16.1
Minimum and FIA equivalent.
Mandatory |
|
General Reg 6080, Safety,
Interior, Safety belt/harness
All vehicles requiring a Tech
Inspection, then centre-locking, five
point or six point ‘V’ type racing
harness required.
Mandatory |
|
General Reg 6100, Safety,
Interior, Safety belt/harness |
All vehicles requiring a Tech Inspection
then minimum webbing width as per
manufactures requirements complying with
SFI 16.1 minimum or FIA equivalent when
used with approved head and neck
restraint systems.
Mandatory |
|
General Reg 6140, Safety,
Interior, Safety belt/harness |
If sedans, Dragster, Altered or Funny
Car, and with a known performance of
more than 200 mph (320 kph), then
complies to SFI 16.1 minimum or FIA 8852
aquivalent.
Mandatory |
|
General Reg 6150, Safety,
Interior, Safety belt/harness |
All vehicles with a known performance of
more than 200MPH, then no older than 2
years from date of manufacture and must
not exceed expiration date SFI 16.1
minimum. FIA equivalent no older than 5
years from date of manufacture and/or
must not exceed expiration date
Mandatory |
|
General Reg 6155, Safety,
Interior, Safety belt/harness |
Minimum 2 inch wide 5 point harness
meeting SFI 16.1 or 16.2 or FIA
equivalent minimum.No older than 10
years from date of manufacture or 5
years from expiry date.
Mandatory |
|
|
|
RULE
UPDATES and AMENDMENTS 24/25 Season |
20th September
2024 |
|
GENERAL REGULATIONS
Gen Reg 7815,
Vehicle, Staging
Where a venue
utilises the auto-start system the
staging timer is only activated where
one competitor is in Full Stage and the
other in pre-Stage. If a competitor has
failed to stage within twenty (20)
seconds for Sportsman classes, or seven
(7) seconds for Professional,
Performance and Pro Radial of his or her
opponent being permitted to do so, then
that competitor will be disqualified.
Mandatory
Gen Reg 7818
A reasonable
amount of time will be allowed for
Driver/ Rider to stage, with that
determination being at the sole and
absolute discretion of The Starter.
Failure to stage upon The Starter’s
instructions is possible grounds for
disqualification. If a competitor has
failed to stage within twenty (20)
seconds for Sportsman classes, or seven
(7) seconds for Professional,
Performance and Pro Radial of his or her
opponent being permitted to do so, then
that competitor may be adjudged to be
“sandbagging”, and The Starter may
initiate the starting sequence, at their
discretion.
Mandatory
Gen Reg 7590
Vehicle, Parachute
When in the
hands of the starter, safety pins used
to retain parachute must be removed,
failure to remove safety pins, devises
and packing cord will automatically see
that run disallowed.
Mandatory
Gen Reg 7825
Vehicle, Bye Solo – Staging
Bye/Solo run -
Vehicles/Bikes must stage and accept the
tree under their own power (engine
running) for the WIN to be awarded.
Mandatory
JUNIOR DRAGSTER
Class Reg
28740 Engine, Engine – Location
Crankshaft
centreline maximum 21 inches (533.4 mm)
above ground, measured when tyres are
inflated normally.
Mandatory
SUPERCHARGED
OUTLAWS
Class Reg
31510, Engine, Supercharger
Belt driven
Roots, Screw and Pro Charger type
supercharger
Allowed
Class Reg
31512, Engine, Turbo Charged
Turbo Charging
Allowed
Class Reg
31514, Engine, Nitrous
Nitrous Oxide
Injection
Allowed
EXTREME BIKE
Extreme Bike will
be all run, that qualify between 0.00
and 8.99 seconds or (1/8 mile
equivalent)
SUPERCOMP
SUPER
COMPACT
New Class DD/OM
Class Reg
19974
DD/OM Four
Cylinder engine only up to 2.4 litre
Minimum weight 2100lbs (952.5kg). 2 x
Power Adders only. Maximum Rear Tyre
size 28x9. Engine must be sealed prior
to competition racing
Mandatory
New Class CC/OM
Class Reg
19975
CC/OM Four
Cylinder engine above 2.5 litre litre
Minimum weight 2100lbs (952.5kg). 2 x
Power Adders only. Maximum Rear Tyre
size 28x9. Engine must be sealed prior
to competition racing
Mandatory
Weight
Break DD/OM
Class Reg
21365, Vehicle, Weight Break
If Racing Class
if DD/OM, then engine type is 4
cylinder, and minimum weight is 952.5 kg
(2100 lbs).
Mandatory
PRO STOCK MOTORCYCLE
Class Reg
8925, Chassis / Frame, Wheel – rear –
tyre – width
Must be minimum
8" (203.2mm )and Maximum 10" (250.4mm)
Mandatory
Class Reg
8926, Chassis / Frame, Rear Suspension
No rear
suspension allowed
Mandatory
Class Reg
8950, Chassis / Frame, Wheelie bars
Wheelie bars
Mandatory
Class Reg
9150, Engine, Engine – main case
Engine cast main
case modifications, if not V-Twin.
Forbidden
Class Reg
9190, Engine, Engine – main case
Engine main case
if Kawasaki and Suzuki then billet
crankcase.
Allowed
|
|
|
Revised May 2023 |
|
PARACHUTE
DEPLOYMENT |
|
DOES YOUR
VEHICLE EXCEED 150 MPH
(241 KPH)? |
|
Once your
vehicle exceeds 150mph
(241kph) your parachute
is deemed to be part of
your vehicle's braking
system. You are required
to adhere to the
following rules. |
|
|
|
PARACHUTE
RULES (General
Regs) |
|
General Reg
7540, Vehicle, Parachute
If fitted, must be
repacked on day of
racing to ensure proper
deployment.
Mandatory |
|
General Reg
7550, Vehicle, Parachute
If fuel is
nitromethane, then
exposed shroud lines and
parachute pack protected
with fire-resistant
material.
Mandatory |
|
GeneralReg 7560,
Vehicle, Parachute
All vehicles that exceed
150mph (241kph) must be
fitted with a parachute.
It is mandatory that the
chute is deployed by the
end of the speed trap.
Mandatory |
|
General Reg
7570, Vehicle, Parachute
Diameter at least 1 inch
(25.4mm) bush with 1/2
inch bolt. Quick release
pins permitted.
Mandatory |
|
General Reg 7575
Vehicle, Parachute
Diameter at least 1 inch
(25.4mm) bush with 1/2
inch bolt. Quick release
pins permitted.
Allowed |
|
General Reg
7580, Vehicle, Parachute
During pre-race
preparation, devices or
pins to prevent
parachute opening marked
with clearly - visible,
bright-coloured ribbon
or flag.
Mandatory |
|
General Reg
7590, Vehicle, Parachute
When in the hands of the
starter, safety pins
used to retain parachute
must be removed, failure
to remove safety pins
will automatically see
that run disallowed.
Mandatory |
|
General Reg
7600, Vehicle, Parachute
Failure to deploy
Parachute/s will result
in disciplinary action
and is subject to
licence suspension and
or monetary fines.
Mandatory |
|
General Reg
7620, Vehicle, Parachute
If vehicle exceeds
200mph (320kph), dual
with separate sahroud
line attachment point.
Mandatory |
|
|
|
General Reg 12
It is the responsibility
of the participant not
IHRA Australia or any
track, to ensure that
all safety equipment is
approved and is
correctly installed,
worn, maintained and
used.
Mandatory |
|
|
|
IHRA Australia
Technical Department |
|
|
|
|

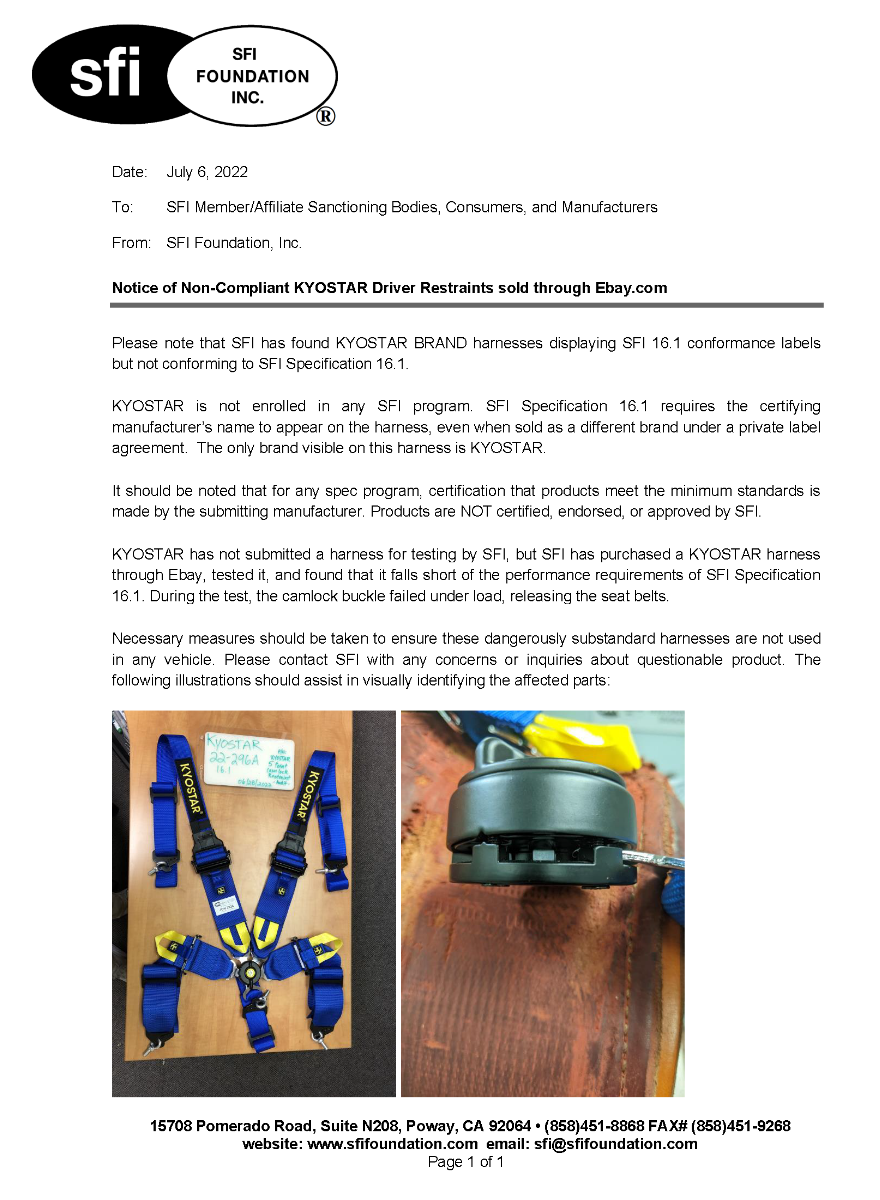

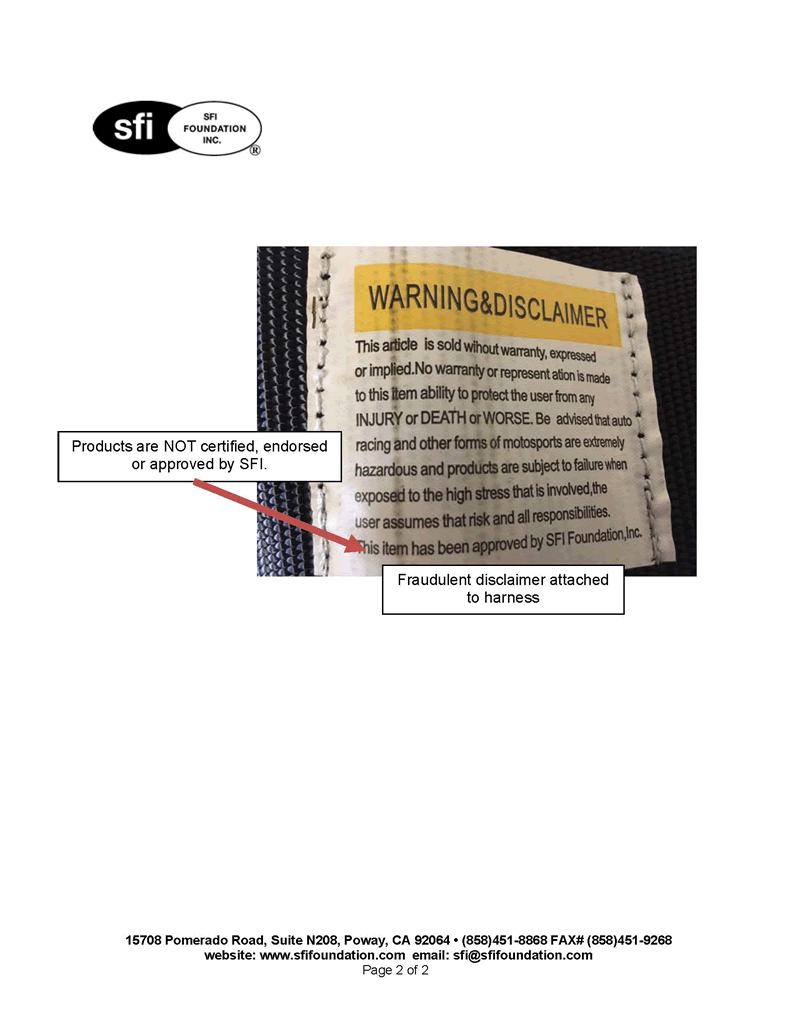

SFI NOTICE of NON
COMPLIANT Products
KYOSTAR HARNESS |
|
|
|
|

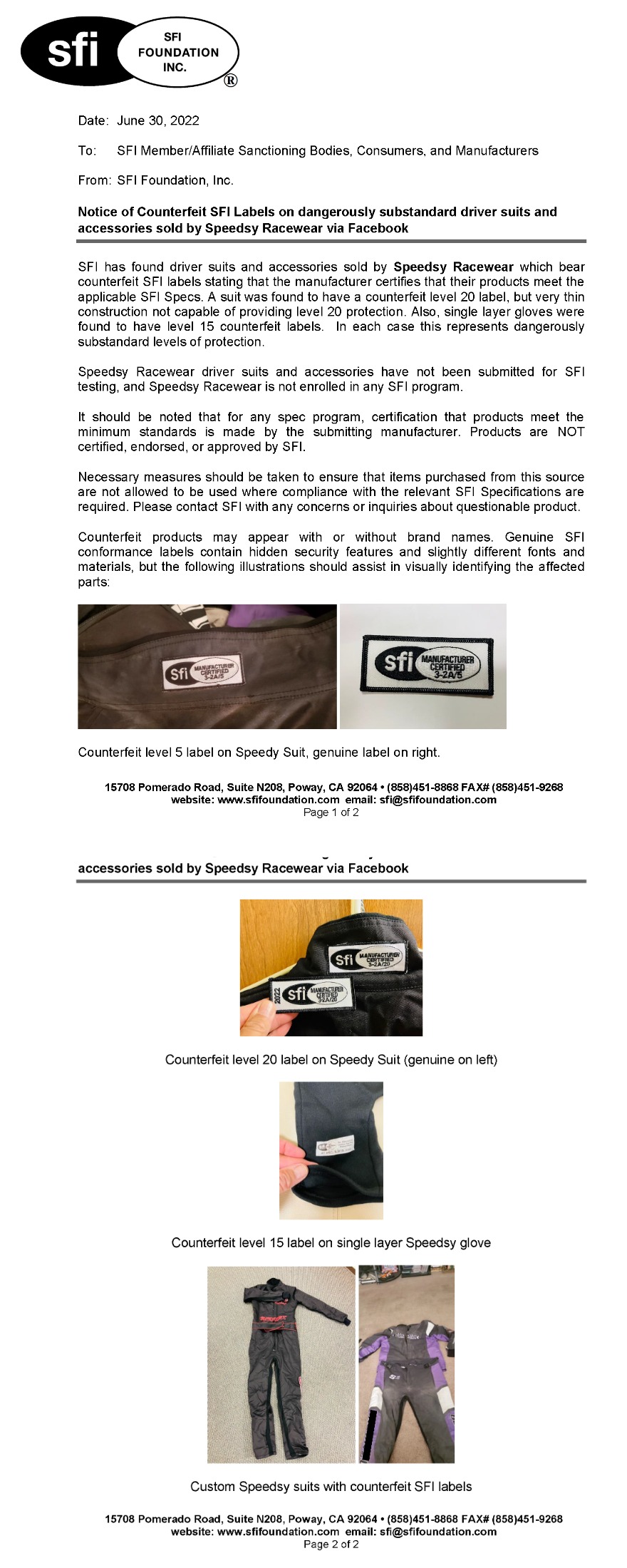

Counterfeit SFI Labels
Speedys Racewear via
Facebook |
|
1st July
2022 |
|
|
|
ONBOARD FIRE SUPPRESSION
SYSTEMS UPDATE |
Date: December 22, 2021 |
|
General Regulations
Rules - 6480 and 6850
have been amended. |
|
General Reg
6840, Safety, Support
Group, Fire suppression
system
Agent spray nozzles to
be configured to
manufacturers
recommendations.
Mandatory |
|
General Reg
6850, Safety, Support
Group, Fire suppression
systems
At least 1 nozzzle to be
sprayed into driver's
compartment.
Mandatory |
|

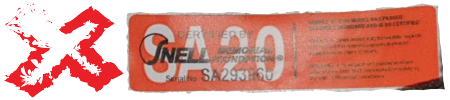

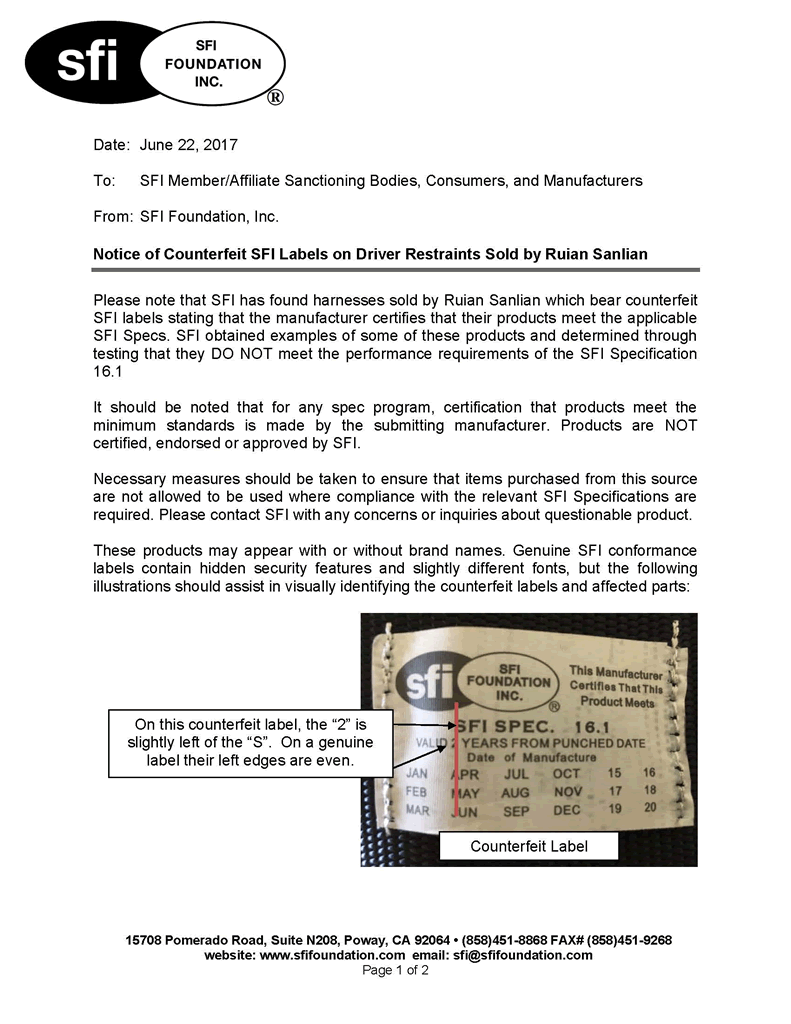

COUNTERFEIT SFI LABELS |
IHRA - 17th July 2021 |
|
|
|
Date: June 14, 2021
To: SFI Member/Affiliate
Sanctioning Bodies,
Consumers, and
Manufacturers
From: SFI Foundation,
Inc.
|
|
Notice of
Counterfeit SFI Labels
on Driver Restraints
Sold by SLAPCO
through Amazon.com |
|
Please note that SFI has
found harnesses sold by
SLAPCO which
bear counterfeit
SFI labels stating that
the manufacturer
certifies that their
products meet the
applicable SFI
Specs.
SLAPCO harnesses have
not been submitted for
testing by SFI, an
SLAPCO is not
enrolled in any SFI
program.
It should be noted that
for any spec program,
certification that
products meet the
minimum standards is
made by the submitting
manufacturer. Products
are NOT certified,
endorsed, or approved by
SFI
Necessary measures
should be taken to
ensure that items
purchased from this
source are not allowed
to be used where
compliance with the
relevant SFI
Specifications are
required. Please contact
SFI
with any concerns or
inquiries about
questionable product.
Counterfeit products may
appear with or without
brand names. Genuine SFI
conformance labels
contain hidden security
features and slightly
different fonts and
materials, but the
following illustrations
should assist in
visually identifying the
affected
parts:
|
|
|
|
15708 Pomerado
Road, Suite N208, Poway,
CA 92064 • (858)451-8868
FAX# (858)451-9268
website:
www.sfifoundation.com
email:
sfi@sfifoundation.com |
|
|
|
COUNTERFEIT SFI LABELS |
IHRA - 24th June 2021 |
|
|
|
Date: June 22, 2021
To: SFI Member/Affiliate
Sanctioning Bodies,
Consumers, and
Manufacturers
From: SFI Foundation,
Inc. |
Notice of
Counterfeit SFI Labels
on Driver Restraints
Sold by RASTuning Parts
through Amazon.com |
|
Please note that SFI has
found harnesses sold by
RASTuning Parts which
bear counterfeit
SFI labels stating that
the manufacturer
certifies that their
products meet the
applicable SFI
Specs.
RASTuning Parts
harnesses have not been
submitted for testing by
SFI, and
RASTuning Parts is not
enrolled in any SFI
program.
It should be noted that
for any spec program,
certification that
products meet the
minimum standards is
made by the submitting
manufacturer. Products
are NOT certified,
endorsed, or approved by
SFI
Necessary measures
should be taken to
ensure that items
purchased from this
source are not allowed
to be used where
compliance with the
relevant SFI
Specifications are
required. Please contact
SFI
with any concerns or
inquiries about
questionable product.
Counterfeit products may
appear with or without
brand names. Genuine SFI
conformance labels
contain hidden security
features and slightly
different fonts and
materials, but the
following illustrations
should assist in
visually identifying the
affected
parts:
|
|
|
15708 Pomerado
Road, Suite N208, Poway,
CA 92064 • (858)451-8868
FAX# (858)451-9268
website:
www.sfifoundation.com
email:
sfi@sfifoundation.com |
|
|
|
SEDAN ROLL CAGE
REGULATIONS REVISED |
IHRA - 27th March 2020 |
|
IHRA Australia have
Revised the Sedan Roll
Cage Regulations.
click link:
https://ihra.com.au/roll-cages-chassis.html
|
|
|
|
REQUIREMENTS FOR
NATIONAL RECORD SETTING |
IHRA - 2nd March 2020 |
|
PROFESSIONAL
ELIMINATION RACING |
ET and MPH can be set
during Qualifying or
Eliminations.
All passes require a 1%
back up pass. |
|
PROFESSIONAL
ALL RUN FORMAT |
ET and MPH can only be
set during the three
rounds of racing.
All passes require a 1%
back up pass.
Note:
Records cannot be
reset in a testing or
sighting pass. |
|
PERFORMANCE
RACING |
Performance racers can
set MPH records in
Qualifying or Racing.
ET records can only be
set during eliminations.
All passes require a 1%
back up pass. |
|
SPORTSMAN
RACING |
Sportsman racers can set
ET and MPH records in
Qualifying or Racing
All passes require a 1%
back up pass. |
|
ALL CLASSES |
Runs bettering the
current National Record
and NOT
backed up within 1% will
be used to back up a
slower run that betters
the current National
Record. |
|
CLAIMING A
NATIONAL RECORD |
Any racer claiming a
National Record must
present the vehicle/bike
to an IHRA official
immediately after the
run for classification,
Fuel and Weight
verification testing,
with time card to verify
the claim. |
|
|
|
IHRA - 28th November
2019 |
|
Attention: All Junior
Dragster Race Teams |
FRONTAL HEAD RESTRAINT
SYSTEMS (Junior
Dragster) |
Effective
Immediately |
AS/NZS 1698-2006 or
AS/NZS 1698 - ECE R22-05
- M2010 and M2015
Standards are primarily
used in the motorcycle
industry only. These
helmets do not come with
pre drilled / tapped
mounting ports for the
fitment of the Frontal
Head Restraint System.
Therefore these helmets
will not be used with
the Frontal Head
Restraint System. These
actions have led to this
Bulletin. |
|
IHRA Australia Technical
Department wish to
advise all Junior
Dragster Teams that an
updated helmet MATRIX
has been made available
on the IHRA Australia
website.
http://www.ihra.com.au/helmets.html
|
|
Note: Motorcycle Helmets
are strictly prohibited
for the use with the
Frontal Head Restraint
System. |
|
IHRA Australia
TECHNICAL DEPARTMENT |
|
|
|
|
|
|
|
|
IHRA - 30th September
2019 |
|
Attention: All Junior
Dragster Race Teams, |
|
As we can all
appreciate, safety is
paramount, and we must
all play a part in
keeping our future stars
of the sport safe and
protected throughout
their journey in junior
drag racing. |
Therefore in keeping
with world standards
IHRA Australia Tech
Department has announced
that all Junior Dragster
categories A/JD, B/JD
and C/JD competitors,
commencing January 1st
2020 you will be
required to wear a head
and neck
restraint/system meeting
SFI 38.1 or FIA
8858-2002 or FIA
8858-2010. The
device/system must be
commercially produced by
a manufacturer in the
SFI 38.1 or FIA
8858-2002 or FIA
8858-2010 head and neck
restraint program. The
head and neck restraint
device/system, when
connected, must conform
to the manufacturer's
instructions, and it
must be configured,
maintained, and used in
accordance with the
manufacturer's
instructions. |
|
A head and neck
restraint device/system
may be used with or
without a neck collar.
if the device/system is
used without a neck
collar, a head
sock/balaclava or
skirted helmet
is mandatory. |
|
The IHRA Australia
Supplementary Rule App
has been updated with
Class Reg 28605 being
added and Class Reg
28610 being amended. |
|
IHRA Australia
Tech Department |
|
|
|
|
|
|
Modified Bike Capacity Limits |
|
|
|
CLASS |
|
4 CYLINDER |
|
TRIPLE CYLINDER |
|
TWIN CYLINDER |
|
|
|
|
|
|
|
A/MB &
AA/MB |
|
1061cc
and over |
|
1101cc
and over |
|
1201cc
and over |
|
|
|
|
|
|
|
B/MB & BB/MB |
|
801cc to 1060cc |
|
901cc to 1100cc |
|
1001cc to 1200cc |
|
|
|
|
|
|
|
C/MB &
CC/MB |
|
641cc
to 800cc |
|
721c to
900cc |
|
801cc
to 1000cc |
|
|
|
|
|
|
|
D/MB &
DD/MB |
|
Up to
640cc |
|
Up to
720cc |
|
Up to
800cc |
|
|
|
|
Class
Reg 29200, Modified Bike, Engine
Engine
Capacity, See table and then to a
maximum of 2500 cc.
Allowed |
|
|
|
Class
Reg 29230, Modified Bike, Engine
Up to a
maximum of 3 fitted and no limit on
combined capacity.
Mandatory |
|
|
|
|
|
|
|
Fake SFI
Harnesses (Reminder) |
|
|
|
Just a reminder
that these fake harnesses for sale on
eBay and other on-line stores have been
sited at Willowbank Raceway recently.
|
|
Most of these
harnesses are marketed as being
well-known brands, such as Sparco,
Takata or Sabelt, but others may also
exist. The harnesses appear genuine, but
are copies made by unapproved
manufacturers. These copies have not
been tested, are frequently made from
inferior materials, and are likely to
fail at substantially lower speeds than
the genuine belts.
|
|
How to tell:
- All FIA
spec harnesses made since the start
of 2013 (expiry dates 2018 or later)
must have a transparent FIA hologram
sewn onto at least one of the
shoulder straps. These labels are
supplied to the manufacturers by the
FIA and are expensive and difficult
to reproduce. If there is no
hologram and the expiry is 2018 or
later, it is a fake.
- The
homologation number is often
incorrect. A correct homologation
number looks like:
FIA
D-999.T/98
There must be
a space between the FIA and the D (or B
or C), and a single dash between the D
and the homologation number. There must
be a dot between the homologation number
and the T (or B) and a forward slash to
the 98. If there are missing spaces,
dashes or points, it is a fake. Most of
the dodgy numbers are D-120 and D-124
homologations. The number FIA D-120.T/98 is
a genuine number for a TRW/Sabelt
harness, but only if used by the
original manufacturer.
- The “D” in
the homologation number specifies a
6-strap belt. A “C” represents a
5-strap belt and a “B”, a 4-strap
belt. If you are offered a 4 or 5
strap belt with a “D” number, it is
a fake.
Where the upper
harness is used in multiple
configurations (4, 5 or 6-strap) it will
have three different homologation
numbers, one for each of B, C and D.
-
Physical
Differences:
- The
fake harnesses may use different
stitching at the ends compared
to the genuine one. However, as
different manufacturer use
different stitching it is not
possible to generalise on this.
In the case of the D-120 and
D-124 homologations, the fakes
have multiple crossed stitches
whereas the original has only
have a single cross:
-
Buckles: The buckles will often
not click in properly, and are
prone to partial engagement and
subsequent release. The
mechanism can also feel flimsy
and be poorly finished.
- The
manufacturer’s labels may be an
out of date design.
If you have
bought one of these belts, try to return
it to the eBay supplier. They are,
whether knowingly or not, committing
fraud and can face legal action. Should
someone be killed or injured by the
failure of one of these belts the
likelihood of jail for the seller is
high, not to mention the potential for
litigation.
|
|
These are not
isolated cases. The first five results
returned after a recent eBay search by
the AASA under Sabelt Harnesses were all
fakes; being 4-strap harnesses with the
6-strap “D” homologation. AASA has
notified eBay about several of the
belts, but the scope of the problem is
enormous.
If you have
purchased a harness from an on-line
seller in the past two years, please
check it. Scrutineers will be looking
for them. Fakes will not be accepted at
Scrutiny and your car will be rejected.
One of the awful
consequences of these harnesses is that
our genuine suppliers with original
equipment for sale are being pushed out
of the market. No bricks and mortar
seller with a $450 genuine harness can
compete against the $150 fakes from
dodgy suppliers.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Effective
Immediately |
|
IHRA
Australia would like to inform racers
that VP Race Fuels has been working to
resolve previous issues with the
specific gravity of its race fuel (PSX
+) and has now re homologated the fuel
to ensure a consistent outcome for all
parties. This fuel is available to use
at the next event and onwards.
|
|
Should you have any queries regarding
your fuel do not hesitate to contact VP
Race Fuels in Sydney on (02) 9723 4233 |
|
|
|
|
|
22/08/2018 |
|
PRO
MOD - Honeywell Garrett Jamboree Class
Overview |
|
Pro Mod will
utilise a Heads Up Pro Tree start and
will race using a Seeded Chicago
Shootout Format for field sizes from 6
to 24. This may be amended depending on
the number of available vehicles and the
particular event schedule. It is
designed for full-bodied purpose-built,
Pro Mod & Door Slammer style vehicles,
turbocharged, Blown or Nitrous RWD race
vehicles with minimal rule restrictions
using V8 engines. Maximum of 2 power
adders permitted. Vehicles must run 6
sec or quicker and have functioning
doors. Detailed class rules to be
developed in the future |
|
Class
Designation: PM preceded by car number
The Rules
Currently |
|
- Vehicle
must have doors
- Vehicle
must run 6sec or quicker
- V8 Turbo,
Blown or Nitrous engine combo only
- All
vehicles must meet IHRA Australia
General Regulations
- Must have
fun!
Racing Format.
|
|
Heads up Pro
Tree Start, Seeded Chicago Shootout |
|
|
|
04/07/2018 |
|
Carbon
Fibre Brakes: |
|
|
|
General
Reg 805, Safety, Chassis/Frame, Carbon
Fibre |
|
Carbon Fibre
brake rotors measurning a minimum
diameter of 280mm (11inches_ rear wheels
minimum required on all vehicles
weighing more than 2100 lbs (925 kgs)
and exceed 225 mph.
Carbon Fibre
brake rotors must be used in conjunction
with specific carbon fibre brake pads.
Mandatory
from 01/01/2019 |
|
|
|
02/04/2018 |
|
|
|
|
|
NOTICE of
RECALL: Driver Restraint Assemblies
Manufactured and Certified to SFI
Specification 16.1 by Ruian Dragon and
Ruian Dongjinlong. |
|
To All Racers,
Sanctioning Body Officials, Equipment
Wholesalers and Retailers, |
|
Driver
Restraint Assemblies Manufactured and
Certified to SFI Specification 16.1 by
Ruian Dragon and Ruian Dongjinlong have
been found to be non-compliant with SFI
Specification 16.1. All camlock type
Driver Restraint Assemblies Manufactured
and Certified to SFI Specification 16.1
by Ruian Dragon and Ruian Dongjinlong
must be immediately be removed from
service and retured by Ruian
Dongjinlong. |
|
This recall
includes Driver Restraint Assemblies
Manufactured and Certified to SFI
Specification 16.1 by Ruian Dragon or
Ruian Dongjinlong and sold under the "
TANAKA" BRAND: |
|
|
|
Ruian
Dongjinlong Auto Parts Co.,Ltd
Buliding 1,
No.2 South Development Zone, Economic
Development Zone,
Feiyun Town,
Ruian City, Zhejiang, China
Tel:+86-13486706757
+86-0577-66853034 Fax: +86-0577-65028808
E-mail:alanwanautoparts@vip.163.com
www.djlseatbelts.com |
|
15708
Pomerado Road, Suite N208, Poway, CA
92064 • (858)451-8868 FAX#
(858)451-9268
website:
www.sfifoundation.com
email: sfi@sfifoundation.com |
|
|
|
RUIAN
DONGJINLONG CAMLOCK RESTRAINT PRODUCTS
RECAL |
|
|
|
|
Since
Ruian Dongjinlong's (Formerly
Ruian Dragon) camlock 3 inch 5
points racing harness has some
camlock assemblies issues, Any
and all camlock Driver Restraint
Assemblies Manufactured
certified to SFI Specification
16.1 By Ruian Dongjinlong,
including but not limited to
those branded as "TANAKA", "PW"
and "TENZO-R" must be
immediately removed from website
and returned to Ruian
Dongjinlong. All applicable
sanctiong bodies have been
notified of the nonclompliance.
At
the moment, herby Ruian
Dongjinlong will recall all
products we sold. And will do
some improvement for camlock
style racing harness and will be
recertified soon.
Sorry
for bringin you some
Inconvenience. |
|
|
Ruian
Dongjinlong Auto Parts Co.,Ltd
30th.
March, 2018
|
|
|
|
|
|
|
|
|
|
JUNIOR DRAGSTER
UPPER AGE CUT OFF |
|
|
|
09/02/2018:-
|
|
IHRA Australia has increased the upper
age limit for Junior Dragster
competitors. Upon Driver turning 18
years of age any further competition is
forbidden. |
|
|
|
Class Reg 28500 Junior Dragster, Safety,
Driver / Rider, Credentials |
|
Aged between 8 and 17 years and correct
JD Class Licence held has parent /
guardian consent. |
|
Mandatory |
|
|
|
Class Reg 28520 Junior Dragster, Safety,
Driver / Rider, Credentials |
|
Upon Driver turning 18 years of age any
further competition is forbidden. |
|
Forbidden |
|
|
|
Class Reg 28530, Junior Dragster,
Safety, Driver / Rider, Credentials |
|
If A/JD, then for drivers between the
ages of 13 and 17 years, limited to ET
no quicker than 7.90 seconds and Top
Speed no faster than 89.99mph (144kph) |
|
Mandatory |
|
|
|
Class Reg 28540, Junior Dragster,
Safety, Driver / Rider, Credentials |
|
If B/JD, then for drivers between the
ages of 11 and 17 years, limited to ET
no quicker than 8.50 seconds and Top
Speed no faster than 80 mph (128kph) |
|
Mandatory |
|
|
|
Class Reg 29071, Junior Dragster |
|
If a new driver for A/JD Driver must be
between 13 and 17 years of age and must
complete 6 runs between 8.50 and 8.90 to
the satisfaction of an IHRA Steward, to
be recorded on race licence, may be
conducted over series of events. After
initial sign off competitor must
complete 6 runs between 7.90 and 8.50 to
the satisfaction of an IHRA Steward
before competing in competition. All
runs to be solo passes. |
|
Mandatory |
|
|
|
|
|
For any further information
please contact Head Office on 07 5324
1360.
|
|
|
|
Kind Regards
IHRA
Australia |
|
|
|
|
|
|
|
12/10/2017:- |
|
|
|
|
|
|
|
27/06/2017:- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22/06/2017:- |
|
|
|
Phase
out of Leaded Fuels |
|
|
|
|
|
|
|
|
|
|
|
29/05/2017:- |
|
|
|
Pro
Radial |
|
|
|
What is it – |
|
|
|
Heads up, pro
tree drag racing. First to the finish
wins! |
|
|
|
Big Power on a
small radial tyre (max size 315/60/15
Radial or 29.5x10.5 Pro Bracket Radial”) |
|
|
|
Racing
distance 200 meters (1/8th
mile) |
|
|
|
Production
based cars (up to 3/4chassis) |
|
|
|
Variety of
power adders with 4, 6 & 8 cylinder
engines |
|
|
|
Weight breaks
in place to keep parity between
different power adders |
|
|
|
Why - |
|
|
|
Big power,
Small tyres, in production based cars
that people can relate to. Multiple
power adders across the class allowing
for some great racer rivalry (turbo vs
nitrous) (blower vs Aspirated) etc which
also brings extra crowd interaction. |
|
|
|
Lots of new
technology ( Fuel injection, extensive
data logging etc) |
|
|
|
It is an
extreme challenge to finesse massive
amounts of power these cars make to the
race track via a small and unforgiving
tyre. |
|
|
|
When the setup
is correct, the tyres are so efficient
that you will run faster than what was
ever possible on a slick. |
|
|
|
Where
did it come from - |
|
|
|
Drag radial
racing started in the USA and then had
massive growth in North Carolina where
the original 28 vs 275 style races
kicked the trend into high gear. |
|
|
|
Now there are
full calendars of radial races with
multiple classes and formats in the US. |
|
|
|
If you web
search drag radial racing, there would
probably be enough content to last a
life time of viewing. There are races in
the US that are offering $50,000 to win
and there are lots of big time racers
filling the pits to take some glory! |
|
|
|
Some of the
biggest US drag radial races are held by
the NMCA, Duck X Productions (Lights Out
& No Mercy Races @ SGMP), Outlaw Street
Car Reunion Memphis, Yellowbullet
Nationals Cecil County, Shakedown
Norwalk, Fall Brawl Holly Springs, just
to name a few. |
|
|
|
Most if not
every serious US drag strip has a Drag
radial in their calendar.
The
information & technology is being
filtered to Australian racers fast and
the increasing trend now is to ditch
those old slicks and bolt on some drag
radials and go fast. |
|
|
|
|
|
|
|
24/05/2017:- |
|
|
|
Field Size
Clarification - Supercharged Outlaws -
Top Sportsman |
|
|
|
Supercharged Outlaws |
|
|
|
Class Reg
31620, Supercharged Outlaw |
|
|
|
This bracket
consists of all vehicles that qualify
between 0.00 and 7.99 seconds or (1/8
mile equivalent) |
|
|
|
Top Sportsman |
|
|
|
Class Reg
32210, Top Sportsman |
|
|
|
This bracket
consist of all sedans that qualify
between 0.00 and 8.99 seconds or (1/8
mile equivalent) |
|
|
|
|
|
|
|
13/04/2017:- |
|
|
|
Junior Dragster
Rule Amendment |
|
|
|
Class Reg 29000,
Junior Dragster
If A/JD, and during
qualifying, then ET quicker than 7.90
seconds but no quicker than 7.80 seconds
permitted, and then only once per event.
|
|
Class Reg 29020,
Junior Dragster
If B/JD, and during
qualifying, then ET quicker than 8.50
seconds but no quicker than 8.40 seconds
permitted, and then only once per event.
|
|
Class Reg 29030,
Junior Dragster
If C/JD, and during
qualifying, then ET quicker than 11.90
seconds but no quicker than 11.80
seconds permitted, and then only once
per event.
|
|
Class Reg,
28940, Junior Dragster, Vehicle Controls
Throttle and brake,
operated by foot. Positive throttle
return spring in use.
|
|
Class Reg 28780,
Junior Dragster, Engine, Exhaust,
Muffler
Silencer or Muffler
Optional.
|
|
Class Reg 28790,
Junior Dragster, Engine, Exhaust,
Muffler
Muffler Optional
|
|
Please Note:- |
|
|
|
As
a Friendly Reminder this rule will be
enforced |
|
|
|
Class Reg 29050,
Junior Dragster
If parent/guardian
fails to withdraw their racer from event
due to exceeding ET cut-off limits, then
racer is suspended for 2 meetings and
fined $1,000
|
|
|
|
|
|
08/04/2017:- |
|
|
|
Simpson
Performance Products Snell SA 2015
Certified Voyager 2 Helmet Recall |
|
|
|
|
|
|
|
|
|
|
|
12/02/2017:- |
|
|
|
|
|
|
|
|
|
03/11/2016:- |
|
|
|
BYE RUNS:
Rule Number # 7860 All bye runs must
produce a winner. |
|
|
|
HANDS OF THE
STARTER: Rule Number # 7855 Hands
of the Starter A vehicle is deemed to be
in the hands of the starter when the
front wheel/s enter the designated
burnout area. |
|
|
|
IHRA Australia
would like to clarify the ET cut offs
for the 2016/2017 season for the
following classes |
|
|
|
Supercharged
Outlaws, Top Sportsman, Super Sedan and
Super Street |
|
|
|
The following
ET limits apply to the below brackets
and will be run at all 400 Thunder
Championship events: |
|
|
|
Supercharged
Outlaws → 0 - 7.99
Top Sportsman → 0 - 8.99
Super Sedan → 8.50 - 10.99
Super Street → 10.00 - 12.99 |
|
|
|
Pro Stock
Motorcycle Weight breaks effective June
2016 |
|
|
|
Suzuki 2
Valves 5.75 lbs. per Cube
Suzuki 4
Valves 5.75 lbs. per Cube
Kawasaki 2
Valves 5.75 lbs. per Cube
Kawasaki 4
Valves 5.75 lbs. per Cube
Buell Billet
Engines 665 lbs
Kawasaki's
permitted to use Billet Creak cases. |
|
|
|
The following
points are also in place: |
|
|
|
Engine sealing
is Mandatory and any issues resulting in
clarification of an engine size that
hasn't been tagged will result in the
cylinder head being removed Post Event
for measurement at the track. Failure to
so may/can void any results from the
event. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you have any
further enquiries please email
technical@ihra.com.au |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IHRA AUSTRALIA PTY LTD ACN:
614 774 980 |
|
Website Powered by: |
|
|
|
|
|
